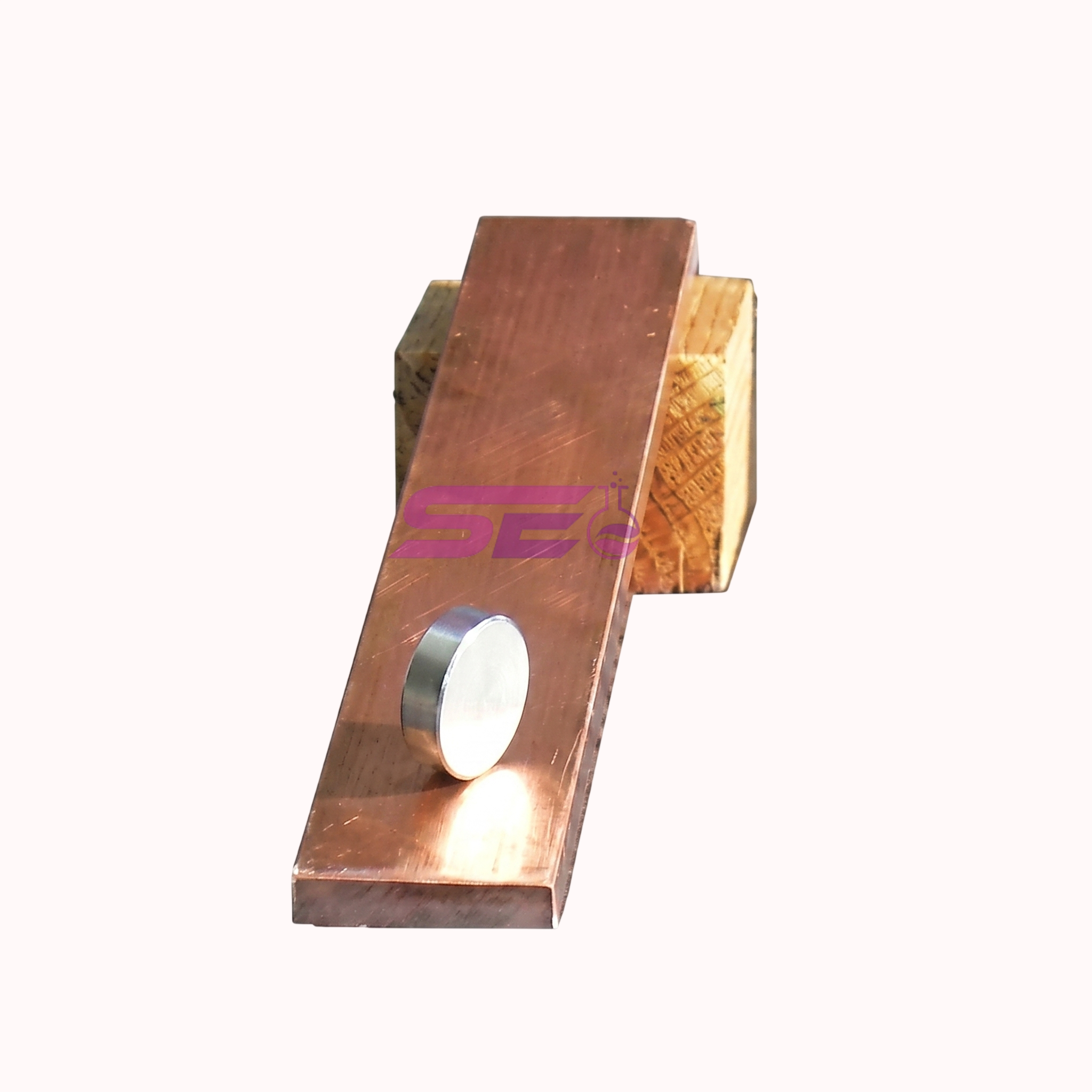

Eddy Current Drag Kit Manufacturer,Supplier and Exporter in India

Product Code : SCL-PLE-11861

The Eddy Current Drag Kit by Scientifc Equipment is an educational physics laboratory apparatus designed to demonstrate eddy currents, electromagnetic induction, magnetic braking, Lenz’s law, drag force, and the interaction between magnets and conducting materials. It is suitable for school physics laboratories, college science labs, electromagnetism practicals, STEM classrooms, teacher demonstrations, and supervised student experiments.

This kit helps students observe how a moving magnet or moving conductor can produce circulating currents in a nearby metal conductor. These induced currents create a magnetic field that opposes the motion, producing a visible drag or braking effect. It supports practical learning of induction, magnetic damping, energy conversion, and real-life applications such as magnetic brakes, speedometers, and metal sorting systems.

Product Description

Eddy currents are circulating electric currents induced in a conductor when it experiences a changing magnetic field. According to Lenz’s law, the induced current creates a magnetic effect that opposes the change that produced it. In an eddy current drag demonstration, a magnet moving near a conducting metal plate, tube, or track appears to slow down due to electromagnetic drag.

The Scientifc Equipment Eddy Current Drag Kit may include strong magnets, conducting plates or tubes, slotted and unslotted metal samples, support frame, guide rail, pendulum arrangement, timing accessories, and demonstration parts depending on product configuration. It is designed for supervised educational and laboratory demonstration use only.

Key Features

• Educational kit for demonstrating eddy current drag and magnetic braking.
• Useful for teaching electromagnetic induction and Lenz’s law.
• Helps students observe how induced currents oppose motion.
• Supports comparison of conducting and non-conducting materials.
• May include solid and slotted conductor samples depending on configuration.
• Suitable for physics, electricity, magnetism, mechanics, and STEM lessons.
• Connects classroom theory with real-world magnetic braking applications.
• Encourages observation, timing, comparison, calculation, and scientific reasoning.
• Designed for supervised educational laboratory use only.

Product Specifications

How to Use

1. Place the Eddy Current Drag Kit on a stable, clean, dry, and level laboratory bench.
2. Inspect the magnets, metal samples, guide track, support frame, clamps, and accessories before use.
3. Set up the conducting plate, tube, or track according to the supplied instructions or teacher demonstration plan.
4. Move the magnet near the conducting material or allow the magnet to fall or slide through the selected conductor setup.
5. Observe the slowing, damping, or drag effect produced by eddy currents.
6. Repeat the demonstration using different materials such as aluminium, copper, plastic, or slotted metal samples if supplied.
7. Compare the drag effect between solid and slotted conductors where applicable.
8. Use a stopwatch or scale to record time, distance, and motion differences if required.
9. Discuss how the observed drag supports Lenz’s law and electromagnetic induction.
10. Relate the experiment to magnetic braking, damping systems, and industrial applications.
11. After use, collect all magnets and metal samples and store them safely.

Safety and Handling Instructions

• Use only under teacher, laboratory instructor, or trained adult supervision.
• Handle strong magnets carefully to avoid finger pinching or sudden attraction to metal objects.
• Keep magnets away from pacemakers, medical electronic devices, watches, magnetic cards, credit cards, phones, computers, and sensitive electronic equipment.
• Do not place magnets near eyes, mouth, or face.
• Do not allow small magnets or small parts to be swallowed; keep away from very young children.
• Do not drop magnets, as they may chip, crack, or shatter depending on material type.
• Keep the demonstration area clear so rolling or falling components do not strike people or fragile objects.
• Use metal samples carefully; avoid sharp edges, burrs, or damaged parts.
• Do not heat magnets or expose them to flames, strong impact, moisture, or corrosive chemicals.
• Store magnets separately with spacers or protective packaging where required.
• Store the complete kit in a clean, dry, and protective place after use.

Educational Applications

• Demonstrating eddy current drag in conducting materials.
• Teaching Lenz’s law through visible magnetic damping effects.
• Explaining electromagnetic induction without direct electrical connections.
• Comparing drag effects in different conductor materials.
• Studying solid versus slotted conductor behaviour.
• Introducing magnetic braking and damping applications.
• Supporting physics practicals, STEM projects, and classroom demonstrations.
• Encouraging observation, timing, comparison, recording, and scientific reasoning.

Why Choose Scientifc Equipment Eddy Current Drag Kit?

The Scientifc Equipment Eddy Current Drag Kit provides a practical and visual way to teach electromagnetic induction and magnetic braking. By allowing students to observe the slowing effect caused by induced currents, the kit makes Lenz’s law, magnetic drag, and energy conversion easier to understand through supervised hands-on experimentation.

FAQ

1. What is the Eddy Current Drag Kit used for?

It is used to demonstrate eddy currents, electromagnetic induction, Lenz’s law, magnetic drag, and magnetic braking effects in conducting materials.

2. Is this kit suitable for school physics laboratories?

Yes, it is suitable for school physics labs, college science labs, STEM classrooms, teacher demonstrations, and supervised student practicals.

3. What are eddy currents?

Eddy currents are circulating currents induced inside a conductor when it experiences a changing magnetic field.

4. Why does a magnet slow down near a conductor?

The moving magnet induces eddy currents in the conductor. These currents create a magnetic field that opposes the motion, producing a drag or braking effect.

5. Can the kit demonstrate Lenz’s law?

Yes, the drag effect is a clear demonstration of Lenz’s law because the induced magnetic effect opposes the change that created it.

6. What materials can be compared in the experiment?

Depending on product configuration, students may compare aluminium, copper, brass, steel, plastic, solid conductors, and slotted conductors.

7. Are strong magnets included?

The kit may include permanent magnets or strong magnets depending on product configuration. Always handle magnets carefully and follow safety rules.

8. How should the Eddy Current Drag Kit be stored?

Store the kit in a clean, dry, and protective container away from moisture, heat, impact, sensitive electronics, magnetic cards, and unauthorized handling.
